SWP-8L-U-CCTS-BRZ

Product Code:

SWP-8L-U-CCTS-BRZ

Export

Location	Current	Intransit	ETA Transit	10%	5%	Alternate
Total

Location	Current	Intransit	ETA Transit	10%	5%	Alternate
Total

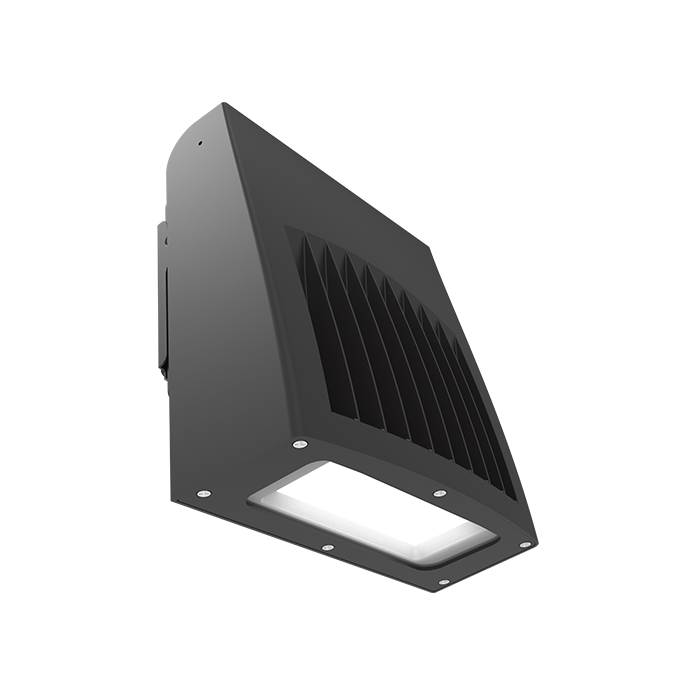

SWP Slim Wall Pack fixture, 120-277Vac input, 8000lm, 63Wac, 4000K, 0-10V dimmable, with CCT select device and Wall Mounting Bracket included.

Low profile die-cast aluminum housing
Bronze polyester powder coat finish (std.)
Custom and factory select colors available¹
Isolated optical compartment with tempered glass lens and silicone gaskets
90° adjustable Type IV distribution or Optional IDA fixed model²
Quick mount bracket standard for easy surface mount installation
Three ½” coin plugs on sides for conduit or electronic photocell
120–277V Universal Voltage or 347V–480V High Voltage³
0–10V Dimmable Driver (std.)
Deep box 10W battery backup & cold weather battery
options available¹
Optional Field Adjustable Output device (FAO) allows individual luminaire lumen output control
3000K, 4000K & 5000K CCT Selectable via Integral selector
>70 Color Rendering Index (CRI)
Calculated L70 >100,000 hrs @ 25°C per TM-21-11
IP65 Rated Luminaire
5 Year Warranty
ETL Listed for Wet Locations
DesignLights Consortium^® Premium Qualified Luminaire
