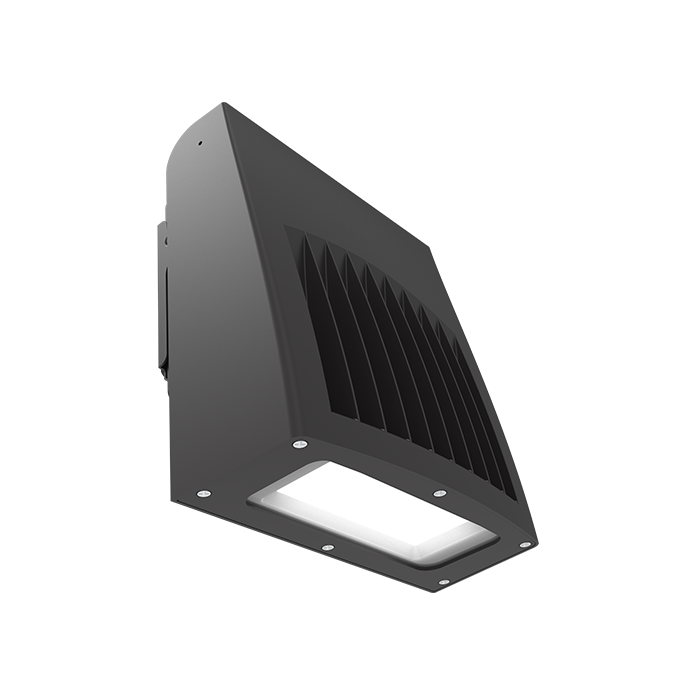

VALUE SLIM WALL PACK
Available SKU’s
SWP-2L-U-CCTS-BRZ
SWP-3L-U-CCTS-BRZ
SWP-5L-U-CCTS-BRZ
SWP-8L-U-CCTS-BRZ
SWP-10L-U-CCTS-BRZ
Please login to see stocking information.
Request for Quote, Lead Time or Sample Here
Export All Files
Location
Current
Intransit
ETA Transit
10%
7%
4%
5%
Alternate
Total
Choose the format to Export data
Export CSV
Export Excel
Export XML
Location
Current
Intransit
ETA Transit
10%
7%
4%
5%
Alternate
Total
Low profile die-cast aluminum housing
Bronze polyester powder coat finish (std.)
Custom and factory select colors available¹
Isolated optical compartment with tempered glass lens and silicone gaskets
90° adjustable Type IV distribution or Optional IDA fixed model2
Quick mount bracket standard for easy surface mount installation
Three ½” coin plugs on sides for conduit or electronic photocell
120–277V Universal Voltage or 277-480V High Voltage3
0–10V Dimmable Driver (std.)
Deep box 10W battery backup & cold weather battery options available¹
Optional Field Adjustable Output device (FAO) allows individual luminaire lumen output control
3000K, 4000K & 5000K CCT Selectable via Integral selector
>70 Color Rendering Index (CRI)
Calculated L70 >100,000 hrs @ 25°C per TM-21-11
IP65 Rated Luminaire
5 Year Warranty
ETL Listed for Wet Locations
DesignLights Consortium® Premium Qualified Luminaire
¹ Contact factory for pricing and availability2 Fixed 3000K CCT model only3 277-480V available in 5L, 8L, 10L Lumen Packages Only
Pedestrian Walkways
Storage Facilities
Building Entrances
Institutions
Multi-use Facilities
Schools
Industrial Facilities
Loading Docks
Parking Lots
