VPAN22-22L/33L/44L-U-CCTS-WWL

Product Code:

Please login to see stocking information.

Installation Instructions Spec Sheet IES Sales Sheet

Export

Location	Current	Intransit	ETA Transit	10%	7%	5% 5%	Alternate
Total

Location	Current	Intransit	ETA Transit	10%	7%	5% 5%	Alternate
Total

Details

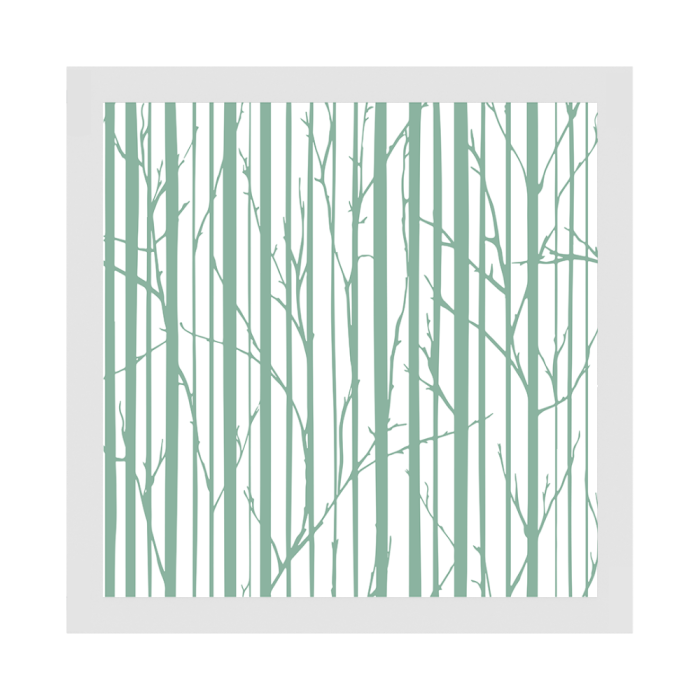

Back-lit Flat Panel, 2x2, 2200/3300/4400lm selectable with PMMA Frosted Lens and a universal voltage driver, CCT Selectable, with additional Whispering Woods Lens

Features

Low Glare Smooth Uniform Illumination Custom Panel Fixture powered by VPAN select
Robust Die-Formed Housing with Post-Paint Finish
Select from Various Lens Options Adding Personality & Dimension to Any Space
Pair Lenses with Acoustic Skylight Mount and Acoustic Drop Panels to Absorb Sound and Deliver More Comfortable Interior Spaces
Grid, Flange, Surface, Suspended, Skylight & Skylight Tilt Mounting Options
Suitable for 15/16” and 9/16” T-Grid Ceiling Types
2×2 & 2×4 Sizes
Field Selectable or Factory Set Lumen & CCT Outputs
2,700 to 7,000 Delivered Lumen Range
- 2×2: 2,700 to 4,400lm
- 2×4: 3,300 to 8,000lm
- 3500K, 4000K, 5000K CCTs
>80 Color Rendering Index (CRI)
Calculated L70 >100,000hrs
120-277V & 347V 0-10V 10% Dim, Bi-Level, Line Voltage, & 1% Dimming Driver Options
Type IC Rated for Insulation Contact
5 Year Warranty
ETL Listed for Dry and Damp Locations
DesignLights Consortium® Qualified Luminaire
