VPAN24-50L/65L/80L-U-CCTS-CPL

Product Code:

VPAN24-50L/65L/80L-U-CCTS-CPL

- +
Please login to see stocking information.

Available Stock

Export
Location Current Intransit ETA Transit 10% 7% 5% 5% Alternate
Total

Choose the format to Export data

Location Current Intransit ETA Transit 10% 7% 5% 5% Alternate
Total

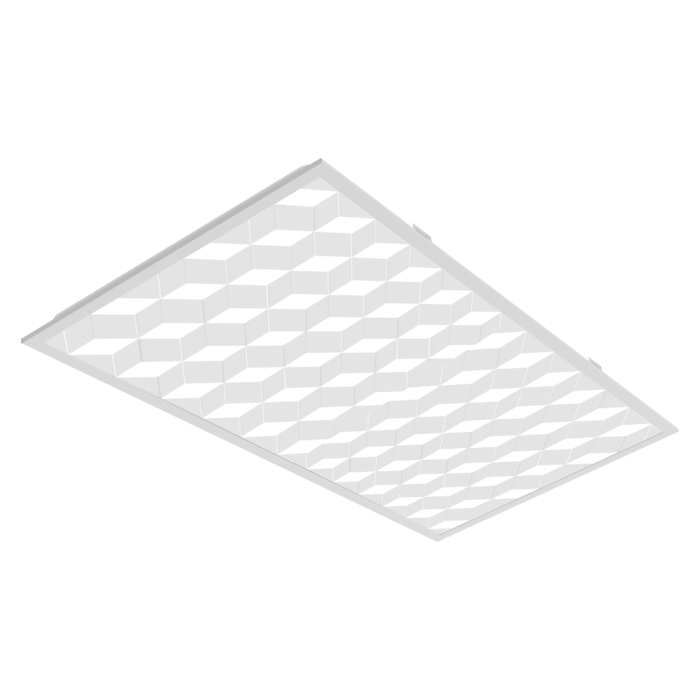

Back-lit Flat Panel, 2x4, 5000/6500/8000lm selectable with PMMA Frosted Lens and a universal voltage driver, CCT Selectable, with additional Cubed Panoramics Lens
  • Low Glare Smooth Uniform Illumination Custom Panel Fixture powered by VPAN select
  • Robust Die-Formed Housing with Post-Paint Finish
  • Select from Various Lens Options Adding Personality & Dimension to Any Space
  • Pair Lenses with Acoustic Skylight Mount and Acoustic Drop Panels to Absorb Sound and Deliver More Comfortable Interior Spaces
  • Grid, Flange, Surface, Suspended, Skylight & Skylight Tilt Mounting Options
  • Suitable for 15/16” and 9/16” T-Grid Ceiling Types
  • 2×2 & 2×4 Sizes
  • Field Selectable or Factory Set Lumen & CCT Outputs
  • 2,700 to 7,000 Delivered Lumen Range
    • 2×2: 2,700 to 4,400lm
    • 2×4: 3,300 to 8,000lm
    • 3500K, 4000K, 5000K CCTs
  • >80 Color Rendering Index (CRI)
  • Calculated L70 >100,000hrs
  • 120-277V & 347V 0-10V 10% Dim, Bi-Level, Line Voltage, & 1% Dimming Driver Options
  • Type IC Rated for Insulation Contact
  • 5 Year Warranty
  • ETL Listed for Dry and Damp Locations
  • DesignLights Consortium® Qualified Luminaire
DLC Premium Warranty - 5 Years ETL Listed
  • Education
  • Healthcare
  • Commercial Office
  • Grocery Store
  • Retail
  • Hospitality
