VFS-5L-U-CCTS-W-KNK-BRZ

Product Code:

Export

Location	Current	Intransit	ETA Transit	10%	5%	Alternate
Total

Location	Current	Intransit	ETA Transit	10%	5%	Alternate
Total

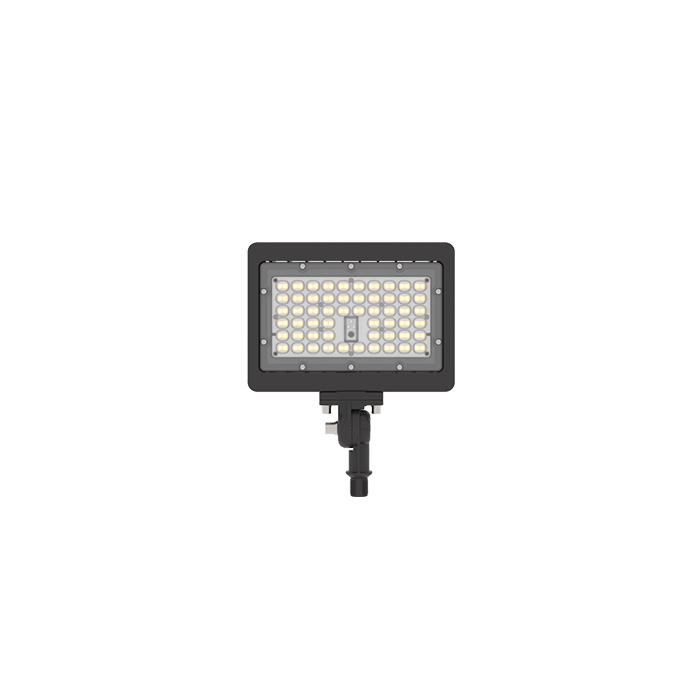

VS Flood, 120-277VAC input, 5000lm, 40W, CCT Select, 0-10V dimmable. with knuckle mount. Bronze color.

Low profile die-cast aluminum housings available in 5 sizes
Bronze polyester powder coat finish (std.)Custom and factory select colors available¹
Fully adjustable NEMA 7×6 distribution or Optional NEMA 5×4
Adjustable Knuckle, Trunnion, Slip fitter, Pole, and Tenon Adapter mounting options²
3000K, 4000K & 5000K CCT Selectable via Integral window selector
4-Level Field Adjustable Output (FAO) allows individual luminaire lumen output control
Embedded Electronic photocell with override switch (std.)
120–277V Universal Voltage or 347V–480V High Voltage³
0–10V Dimmable Driver (std.)
6kV Surge protection (std.); 2.5kV on VFC model
>70 Color Rendering Index (CRI)
Calculated L70 >100,000 hrs @ 25°C per TM-21-11
IP66 Rated Luminaire
5 Year Warranty
ETL Listed for Wet Locations, suitable for ground mounting

¹Contact factory for pricing and availability
²Mounting options vary by size.
³347–480V available only in 14L Lumen Package
